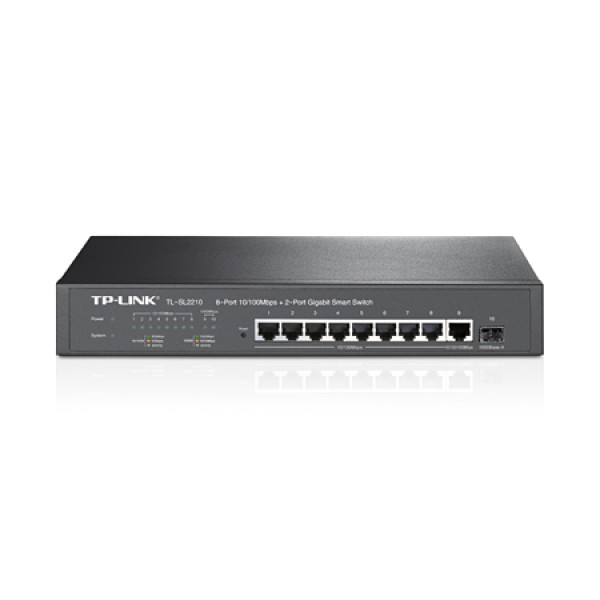

Tp-Link TL-SL2210
Giá:
1.380.000 đ
THÔNG TIN NHANH VỀ SẢN PHẨM
8-Port 10/100Mbps + 2-Port Gigabit Smart Switch
TL-SL2210GIÁ : CALL
Những Tính Năng Nổi Bật:
- 8 10/100Mbps RJ45 Ports, 1 10/100/1000Mbps RJ45 Port, 1 Gigabit SFP Slot
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP Snooping optimize voice and video application
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
Thông số kỹ thuật
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao Thức và Tiêu Chuẩn | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
| Giao Diện | 8 10/100Mbps RJ45 Ports (Auto-Negotiation /Auto MDI/MDIX) 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Truyền Thông Mạng | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF, SMF 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Kích Cỡ (W X D X H) | 11.6 * 7.1 * 1.7 in. (294 * 180 * 44 mm) |
| Tiêu Thụ Điện Năng | Maximum: 4.9W (220V/50Hz) |
| Cấp Nguồn | 100~240VAC, 50/60Hz |
| HIỆU NĂNG | |
|---|---|
| Băng Thông/Backplane | 5.6Gbps |
| Bảng Địa Chỉ Mac | 8k |
| Bộ Nhớ Đệm Dạng Gói Tin | 4.1Mb |
| Tốc Độ Chuyển Tiếp Gói Tin | 4.2Mpps |
| Khung Jumbo | 10KB |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất Lượng Dịch Vụ | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow-based Rate Limiting Voice VLAN |
| Tính Năng L2 | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Danh Sách Kiểm Soát Truy Cập | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
| Bảo Mật | SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control |
| Quản Lý | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL2210 Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows 8/7/Vista/XP, Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
