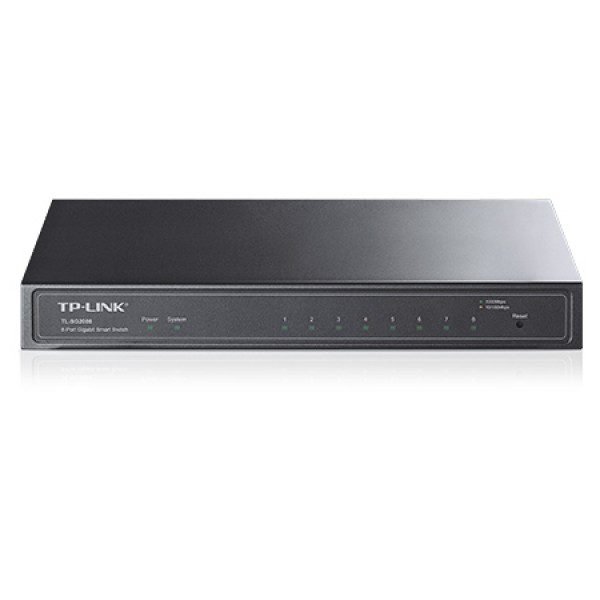

Tp-Link TL-SG2008
Giá:
1.180.000 đ
THÔNG TIN NHANH VỀ SẢN PHẨM
8-Port Gigabit Smart Switch
TL-SG2008GIÁ : CALL
Những Tính Năng Nổi Bật:
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 65% of power consumption
Thông số kỹ thuật
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao Thức và Tiêu Chuẩn | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
| Giao Diện | 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| Truyền Thông Mạng | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Kích Cỡ (W X D X H) | 8.2* 4.9* 1.0 in. (209* 126* 26mm) |
| Tiêu Thụ Điện Năng | Maximum: 6.42W (220V/50Hz) |
| Cấp Nguồn | 100~240VAC, 50/60Hz |
| HIỆU NĂNG | |
|---|---|
| Băng Thông/Backplane | 16Gbps |
| Bảng Địa Chỉ Mac | 8k |
| Tốc Độ Chuyển Tiếp Gói Tin | 11.9Mpps |
| Khung Jumbo | 9216 Bytes |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất Lượng Dịch Vụ | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| Tính Năng L2 | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Danh Sách Kiểm Soát Truy Cập | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
| Bảo Mật | SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control |
| Quản Lý | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2008 Power Adapter Quick Installation Guide Resource CD Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
