Standard

IEEE802.3,IEEE802.3u,IEEE802.3X

Cable

Cat,3,4,5 UTP/STP

port

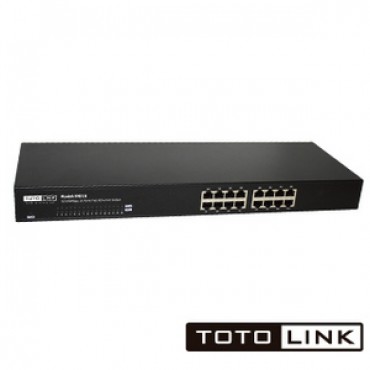

10/100Mbps N-Way Switch T 16

Duplex Modes

Duplex All Ports(Up to 200Mbps)

Uplink

All ports Auto MDI/MDIX(Auto Uplink)

Protocol

CSMA/CD

Switching Architecture

Store & Forward

Filter/Forward Rate

10 BASE-T-14880pps

(packets/sec.)

100 BASE - TX- 148800 pps ( packet/sec.)

Mac Address

8K

Backplane Bandwidth

3.2Gbps

Chipset

RTL8316D/S

LED

Power 1 LED ,10/100Mbps Link LED ;LED per Port

Power

DC 3.3V/2A 100V~240VAC

Material

Iron

Operating Temperature

0~40 degree

Storage Temperature

-10~65 degree

Operating Humidity

10%~90% non-condensing

Size

440mm *160mm *44.5mm
